ITEM NO: KARA0306
Suitable for Aluminum/Steel & Stainless Steel rivets
Designed for professional riveting and continuous operation
Twin air inlet design allows easy operation by right-handed or left-handed users
New spent mandrel container to protect operator's eyes and keep working places clean
Shock-reducer design to minimize hand fatigue
Noise silencer design for working pleasure

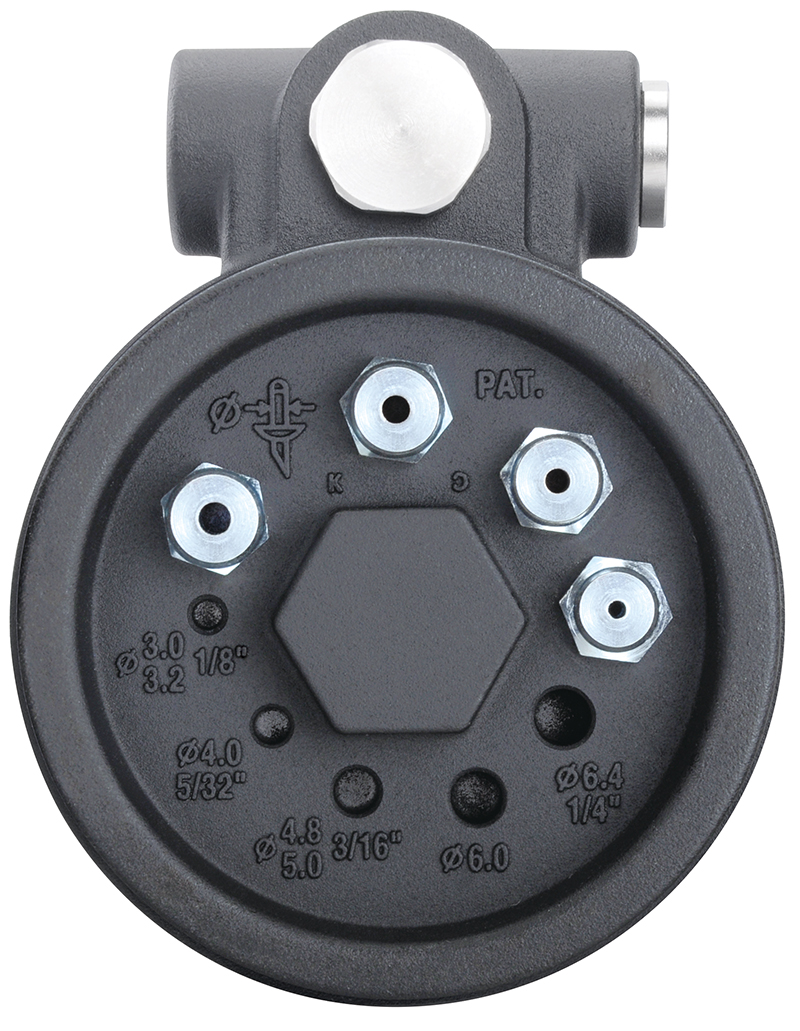

Smart nosepieces storage design to avoid losing nosepieces
Oil refill hole design for quickly refilling the shortage of hydraulic oil
Set includes rivet mandrel collector, two combination wrenches, brush, hydraulic oil injector without oil and one set of extra jaws
Rivet Diameter | Rivet Material | ||
Aluminum | Steel | Stainless Steel (Inox) | |
3.0/3.2mm or 1/8" | ● | ● | ● |
4.0mm or 5/32" | ● | ● | ● |
4.8/5.0mm or 3/16" | ● | ● | ● |
6.0mm | ● | ● | ● |
6.4mm or 1/4" | ● | ● | ●
|
| |||
Rivet Diameter | 3.0/3.2, 4.0, 4.8/5.0, 6.0, 6.4 mm or 1/8", 5/32", 3/16", 1/4" | ||
Stroke Length | 15.8mm | ||
Traction Power | 14700 N / 3300 lbf | ||
Air Pressure | 85~100 PSI (5.9~6.9 BAR) | ||
Air Consumption Per Rivet | 0.11CFR / 3.1LPR | ||
Air Inlet | 1/4" PT | ||
Min. Air Hose | 3/8" I.D. | ||
Overall Length | 10-13/16" / 275mm | ||
Net Weight | 4.65 lbs / 2.11kgs |
